Yamaha MG-10

EAN/UPC:4957812547963

Listen Preis:CHF 249.00

Unser Preis CHF 209.00

16%

Lieferbar: Sofort ab Lager

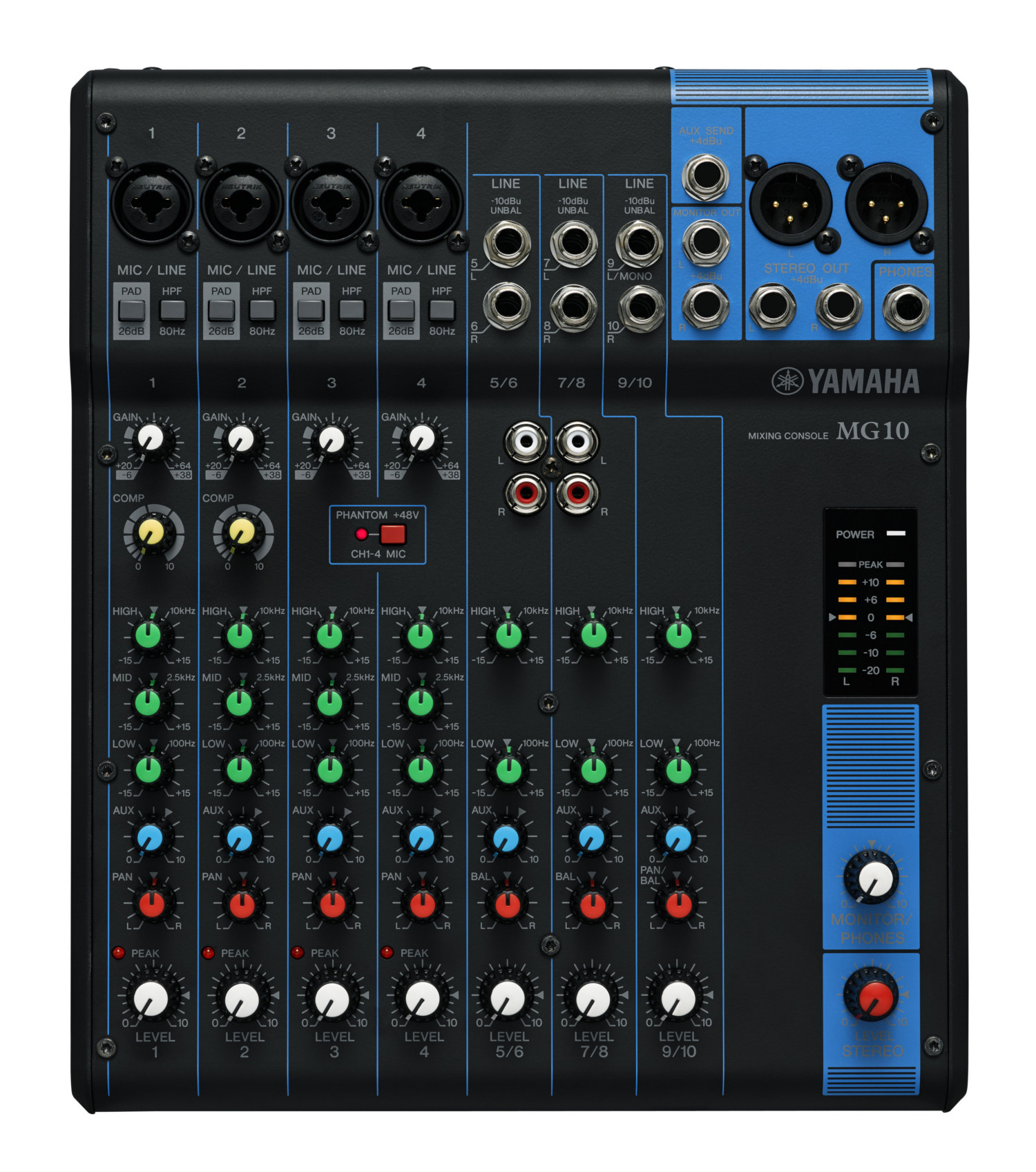

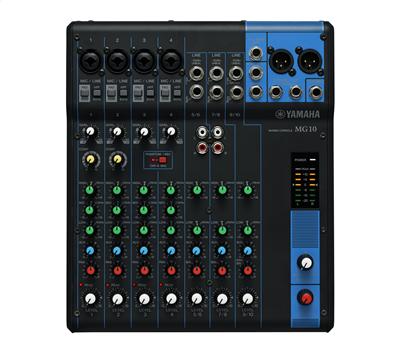

Yamaha MG-10 Mixing Console

Yamaha MG10 MISCHPULT

10-Kanal Mischpult Konsole: Max. 4 Mikrofon- / 10 Line-Eingänge (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl.FX)

10-Kanal Mischpult Konsole
Max. 4 Mikrofon- / 10 Line-Eingänge (4 mono + 3 stereo)
1 Stereo Bus
1 AUX (incl. FX)
“D-PRE” Mikrofonvorverstärker mit invertierter Darlington Schaltung
1-Knopf Kompressoren
PAD Schalter bei Mono-Eingängen
+48V Phantomspeisung
XLR Ausgänge
Metallgehäuse
Maße (B×H×T): 244 mm x 71 mm x 294 mm
Gewicht: 1.9 kg

Technische Daten		MG10
Outline
I/O	Phantom power	+48 V
Input Channels	Mono[MIC/LINE]	4
	Mono/Stereo[MIC/LINE]	-
	Stereo[LINE]	3
Output Channels	STEREO OUT	2
	MONITOR OUT	1
	PHONES	1
	AUX SEND	1
	GROUP OUT	-
Bus		Stereo: 1, AUX: 1
Input Channel Function	PAD	26 dB (Mono)
	HPF	80 Hz, 12 dB/oct (Mono)
	COMP	1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
	EQ HIGH	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
	EQ MID	Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
	EQ LOW	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
	PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
	Level Meter	2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specifications
Total harmonic distortion		0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response		+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level	Equivalent input noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Hum & noise level	Residual output noise	-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk		-83 dB
Power requirements		PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption		22.9 W
Dimensions	W	244 mm (9.6")
	H	71 mm (2.8")
	D	294 mm (11.6")
Net weight		1.9 kg (4.19 lbs.)
Accessories		Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others		Operating Temperature: 0 to +40˚C

0 dBu = 0.775 Vrms Output impedance of signal generator (Rs) = 150Ω
All level controls are nominal if not specified.
Hum & noise level: Noise is measured with A-weighting filter.
Crosstalk： Measured with 1 kHz band pass filter.
