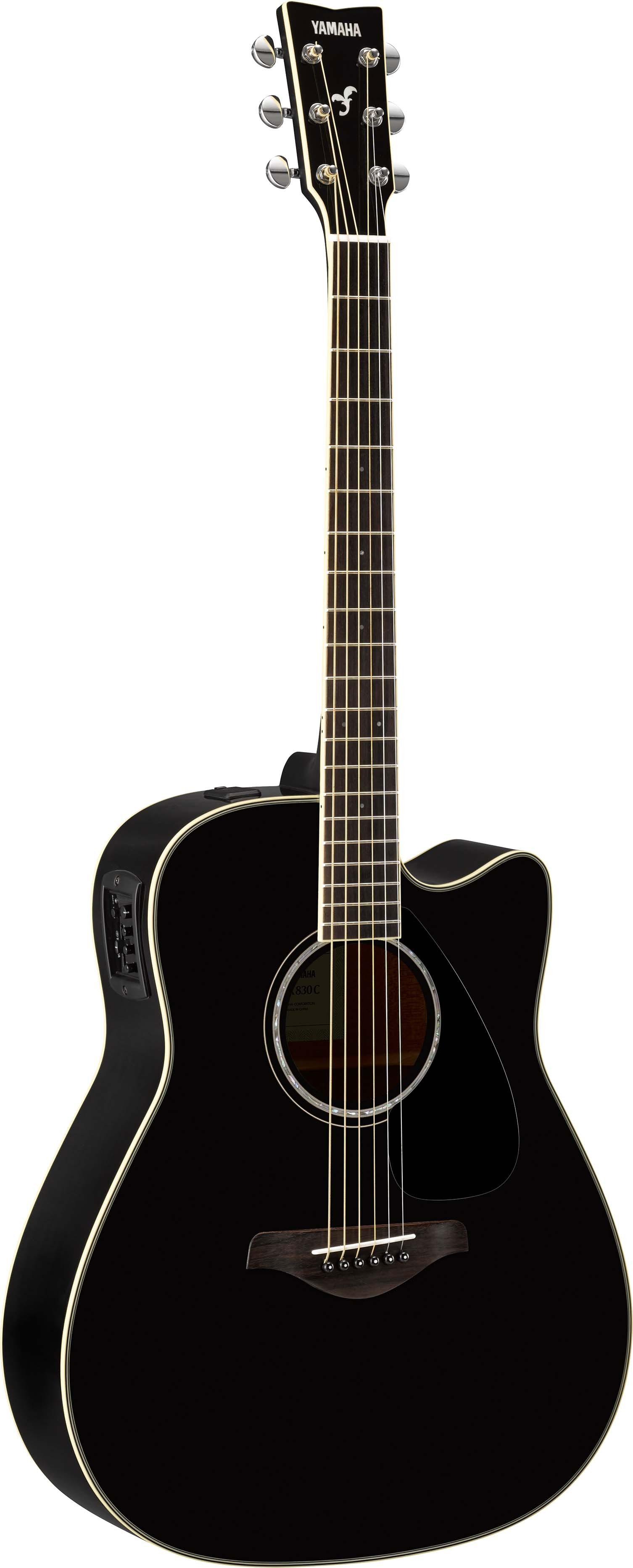

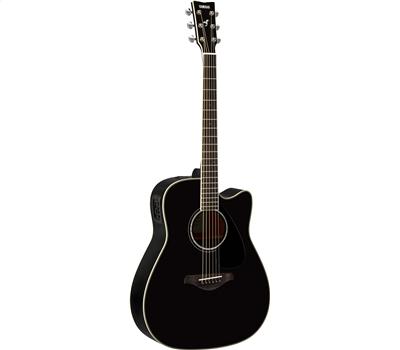

Yamaha FGX 830 C Black

Yamaha FGX 830 C Black

Derived from FG830 which has the solid spruce top and rosewood back/sides, FGX830C has a cutaway body and the electric system. Yamaha's proprietary under-saddle piezo pickup and System66 analog preamp ensure the solid plugged-in performance.

Traditional Western Body
Solid Spruce Top
Rosewood Back & Sides
Newly Developed Scalloped Bracing
Rich Overtones

Technische Daten

General Specifications

Body Shape Traditional Western Cutaway
Scale Length 650mm (25 9/16”)
Body Length 505mm (19 7/8")
Total Length 1038mm (40 7/8")
Body Width 412mm (16 1/4")
Body Depth 100-118mm (3 15/16”- 4 5/8”)
Nut Width 43mm (1 11/16”)
String Spacing * 11.0mm
Top Material Solid Spruce
Back Material Rosewood
Side Material Rosewood
Neck Material Nato
Fingerboard Material Rosewood
Fingerboard Radius R400mm (23 5/8")
Bridge Material Rosewood
Nut Material Urea
Saddle Material Urea
Bridge Pins Black ABS with White Dot
Tuners Die-cast Chrome(TM29T)
Body Binding Cream
Soundhole Inlay Abalone w/ Black + White
Pickguard Tortoise Pattern (Black for BL color variation)
Body Finish Gloss
Neck Finish Matt
Electronics SYSTEM66 + SRT Pickup
Controls Vol/3-band EQ/Tuner/Mid FQ
Connections LINE OUT
Strings .012/.016/.025(or.024)/.032/.042/.052(or.053)
Color Natural, Black
Accessories Hex Wrench, 2 x AA Batteries
